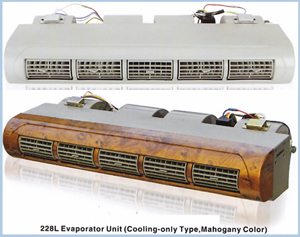

228L Evaporator unit (Cooling-only Type, Double Motor)
Evaporator: 22 Pass 4 Way Alu
Temp: Elec Thermo
Max Airvol 390 CFM
Cooling Capacity 18 000 BTU
Power 24V/4Ax2 12V/8.5Ax2
Dimension 680x305x145mm
Weight: 6.67kg

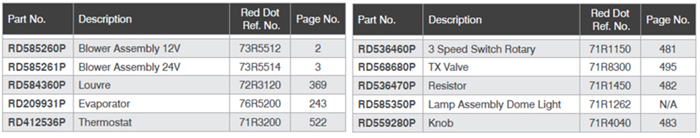

R20006P (12V)
Ceiling Mount Evaporator assembly - Trucks, Motor Homes and Vans
Cooling: 17,000 BTU/Hr
Air Flow: 234CFM (400m3/h)
Weight: 10kg
Replacement Core: RD209931P
R61600P - Rooftop condenser recommended by Red Dot
RD437240P - Universal condenser recommended by Red Dot

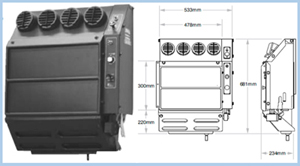

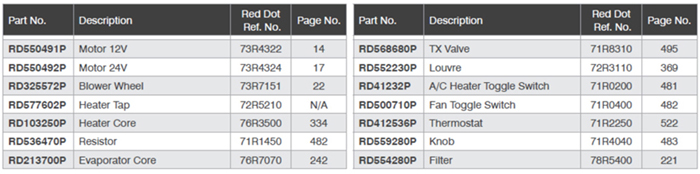

R50452P (12V)
Wall Mount Evaporator/ Heater Assembly
Aid cars, Armoured cars and Personnel carriers
Cooling: 33,000 BTU/Hr
Heating: 46,000 BTU/Hr
Air Flow: 430CFM (730m3/h)
Weight: 21.5kg
No Fresh air intake
Replacement Core: RD213700P
R97300P - Remote Condenser recommended by Red Dot

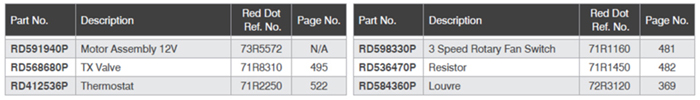

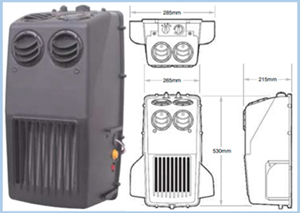

R68400P (12V)
Wall Mount Evaporator Assembly
Medium to Heavy Duty Trucks, Agricultural, Construction, Industrial
Cooling: 22,300 BTU/Hr
Air Flow: 325CFM (552m3/h)
Weight: 7.3kg
Plumbing Cover: RD235150P
Floor Support: RD236730P
R61600P - Rooftop condenser recommended by Red Dot

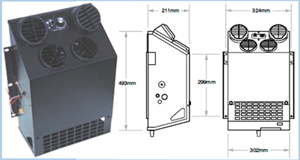

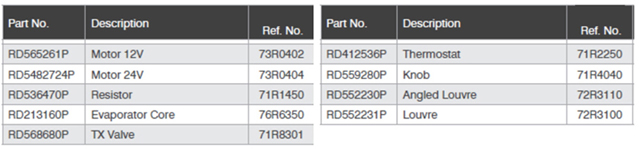

R7830024P (24V)
Wall Mount Evaporator Assembly
Medium to Heavy Duty Trucks, Agricultural, Construction, Industrial
Cooling: 17,180 BTU/Hr
Air Flow: 260CFM (442m3/h)
Weight: 11.5kg
Floor Mount Kit: RD213980P
Replacement Core: RD213160P
R61600P - Rooftop Condenser recommended by Red Dot
R85000P (12V) R8500024P (24V)
Wall Mount Evaporator/Heater Assembly
Agricultural, Construction, Mining
Cooling: 15,200 BTU/Hr
Heating: 22,000 BTU/Hr
Air Flow: 205CFM (348m3/h)
Weight: 11kg
R97300P- Remote condenser recommended by Red Dot
RD437240P- Universal condenser recommended by Red Dot

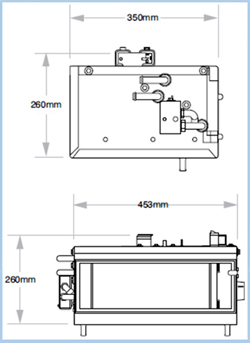

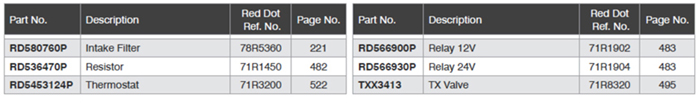

R95200P (12V)
Ceiling Mount Evaporator assembly - Trucks, Motor Homes and Vans
Cooling: 17,000 BTU/Hr
Air Flow: 234CFM (400m3/h)
Weight: 10kg
Replacement Core: RD209931P
R61600P - Rooftop condenser recommended by Red Dot
RD437240P - Universal condenser recommended by Red Dot

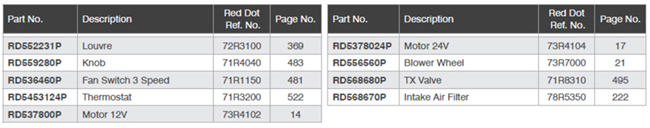

R97550P (12V) R9755024P (24V)
Ceiling Mount Evaporator/Heater Assembly
Construction, Industrial, Mining
Cooling: 17,000 BTU/Hr
Air Flow: 240CFM (408m3/h)
Weight: 14.5kg
Replacement Core: RD220470P
R97203P - Remote condenser recommended by Red Dot

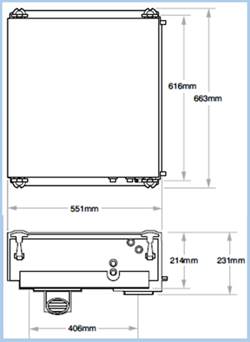

R98000P (12V) R9800024P (24V)
Floor Mount Evaporator/Heater Assembly
Agricultural, Construction, Mining
Cooling: 25,000 BTU/Hr
Heating: 45,000 BTU/Hr
Air Flow: 400CFM (680m3/h)
R97251P - Remote condenser recommended by Red Dot
RD439540P - Universal condenser recommended by Red Dot
R61600P - Rooftop condenser recommended by Red Dot
Weight: 32kg

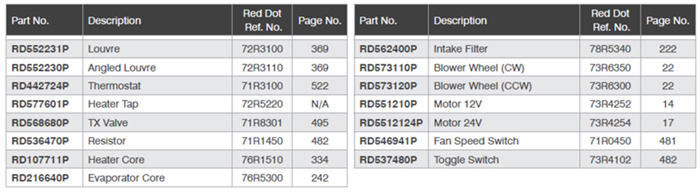

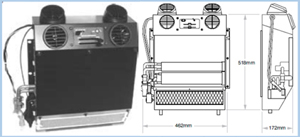

R854510P (12V) R85451224P (24V)
Wall Mount Evaporator/Heater Assembly
Agriculture, Construction, Mining
Cooling: 18,000 BTU/Hr
Heating: 28,600 BTU/Hr
Air Flow: 265CFM (450m3/h)
Weight: 18kg
R97300P - remote condenser recommended by Red Dot
RD437240P - Universal condenser recommended by Red Dot

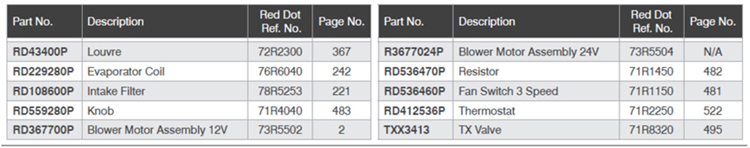

R971510P (12V) R97151024P (24V)
Ceiling Mount Evaporator Assembly
Buses, Fire Trucks, Vans
Cooling: 39,500 BTU/Hr
Air Flow: 577CFM (980m3/h)
Weight: 18kg
Replacement Core: RD229280P
R45008P - Remote condenser recommended by Red Dot
T-98000 Side Mount External Evaporator
Vertical or horizontal - The R-9800 mounts either way to fit your space. The control panel can be remote-mounted for the convenience of the operator. Rubber tie-downs unlatch for easy servicing of all components. Optional equipment include a remote-mount filter and in-line booster blower for a pressurised, dust free cab.
