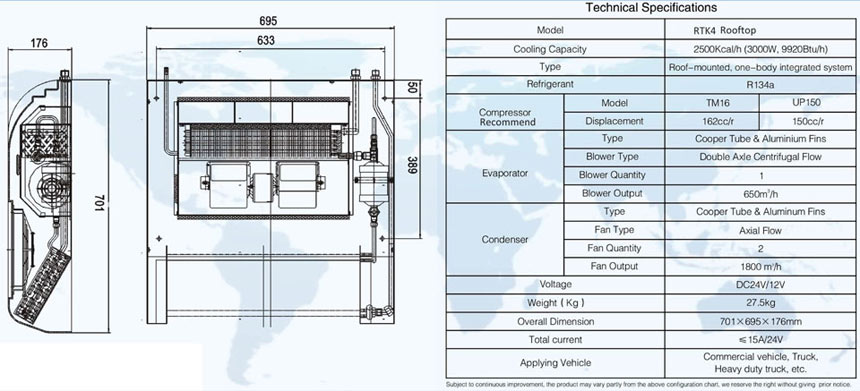

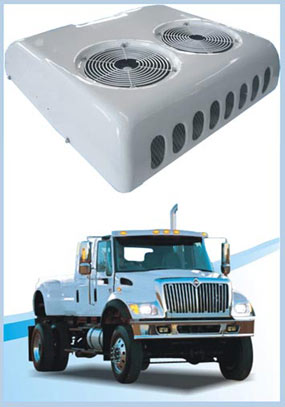

RTK4 ROOFTOP

The RTK4 is smaller capacity version of the RTK5 and are designed for many applications, such as medium & small machine, trucks, tractors, motor homes and any type of mid size equipment with a flat roof. The unit is constructed from 2mm steel with a fibreglass top cover, the plenum is injected moulded plastic and has the same configuration as the RTK5. Evaporator and condenser coils are copper tube and fin.

Unit cooling capacity is 13,700 BTU = 4kw. This unit is a great match up with the DRB3 electric compressor. The unit can be used with an engine drive or with the DRB series compressor in sleeper cabs, small machines or equipment were there is restricted room and it makes a relatively easy installation. Note: Auxiliary batteries must be used (AGM) deep cycle only when running the unit from the DRB3 for sleeper cab situations. The unit is ideal for small excavators, small tractors, and single crane cabins. It is powerful enough to do standard truck cabins. Its small foot print makes it easy placement on most roofs.

the air flow coming from the plenum outlets run east, west, south and directly from two eye ball vents. As per diagram of the plenum, the front small outlets provide good ventilation to the front screen which helps retain fogging, also the side windows.

The unit has easy mounting positions and comes with a 10mm EVA foam base, the unit (must) be sealed with a 227 sikaflex (not silicone). In the case of ribbed roofs, the installer must obtain 20mm EVA foam for the base. Remember, the unit is only good as the installer. it is important the fitter is certified to work on this type of equipment.

This unit is more suited for trucks with, eg, were the park lights are up front and traditionally long neck. Unit comes ready for hook-up, Add your discharge and suction hoses to the engine compressor or electric drive and power feed. Unit takes around 750grams of 134a gas, depending on hose length.

Great compact unit suiting many cabins with capable cooling capacity. The units fans can be replaced with off the shelf items here in Australia except for the receiver drier. Rencool always have good stock of any component for the RTK4.

Features & Specifications

* Air vents x 2 + 3 way grills
* Condenser: Copper tube & fin
* Evaporator: Copper tube & fin
* receiver drier
* T.X. Valve R-Type 1.5 ton
* Sight glass
* Thermostat control electronic with de-ice
* Dual safety pressure switch
* Evaporator Blowers x 1
* Condenser fans x 1
* Powder coasted steel construction frame
* Fibreglass top cover 5mm
* Cooling capacity: 3.00Kw (2500Kcal/h)
* Weight: 19kg
* Refrigerant: R134a
* Evaporator air flow: 1600 m3/h
* Total current: =23A/12V -15A/24V
* Dimensions L: 750mm W: 710mm H: 220mm

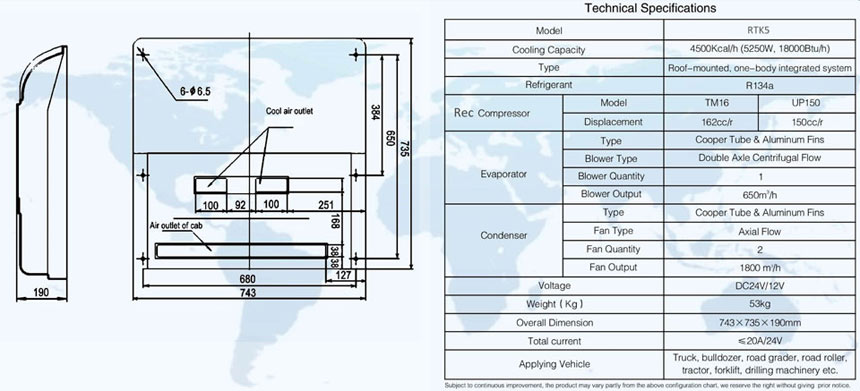

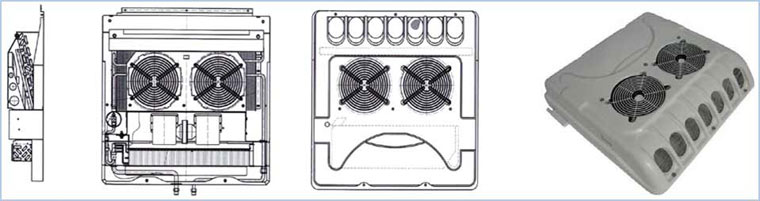

RTK5 ROOFTOP

With its high cooling capacity of 18 000 BTU and slim design its makes the perfect choice in rooftop systems for Australian mobile vehicles

The RTK5 is designed to suit all types of mobile equipment for Australian conditions with tough external and internal construction.

Slimline in design and providing high cooling capacity the RTK5 is the best solution and latest technology in rooftop air conditioning systems.

The Rencool RTK5 rooftop air conditioner is the lowest profile built on the Australian market. This reduces drag whilst driving and also good clearance required for small and large machinery.

The inside plenum incorporates easily removable return air filters allowing quick servicing of the filters.Very low servicing unit with self cleaning condenser coil, makes it ideal for heavy machinery applications also to suit Truck, Earthmoving, Mining Equipment, Motorhomes, Small people movers and more

integrated roof-top mount type, small and compact, convenient for installation
Abundant cooling capacity, low power consumption and low noise
High reliability and working performance, can stand any tough working conditions.
Endurable in use, long life span
Applies to bulldozer, road grader, road roller, tractor, forklift, drilling machinery etc

Features and specifications

*5200 watts of cooling power
*12 and 24 volts
*Strong steel construction
*Copper evaporator and condenser coils
*High capacity fans
*Low profile design
*Low servicing
*Ideal for trucks, machines and motorhomes

Unit Dimensions

L: 760mm
W: 755mm
H: 165mm
Weight: 23kg

Technical Data

Cooling capacity: 5.25KW / 18000BTU
Power: 12 / 24 VDC
Refrigerant: R134a / 900gr
Evaporator air flow: 650m3/h
Condenser air flow: 1800m3/h
Total Current: 12V / 26A : 24V / 16A

Construction

1.6mm Powder Coated Frame
Fibreglass full cover
Copper & Aluminium Evaporator
Copper & Aluminium Condenser

Applications

Trucks, Machinery, Mining, Cranes, Forklifts, Motor Homes, Mini Buses, Vans

The RTK5 is designed for many applications, such as machines, trucks, tractors, motor homes and any type of equipment with a flat roof. The unit is constructed from 2mm steel with a fibreglass top cover, the plenum is injected moulded plastic. Evaporator and condenser coils are copper tube and fin.

Unit cooling capacity is 18,000 BTU = 5.2kw if the compressor has enough capacity, such as a Sanden H-15 or H-14 etc. Smaller compressors still can have the capacity to work the unit, as most auto air conditioner compressors are over capacity on med to high RPM.

The unit is easy to install and requires no major cut out, this is a big winner in regards to roof support and installers time for the cut out. The unit is only 165mm high, this also is a huge advantage against competitors rooftop units. The air flow coming from the plenum outlets run east, west, south and directly from two eye ball vents. As per diagram of the plenum, the front small outlets provide good ventilation to the front screen which helps retain fogging, also the side windows.

The unit has easy mounting positions and comes with a 10mm EVA foam base, the unit (must) be sealed with a 227 sikaflex (not silicone). In the case of ribbed roofs the installer must obtain 20mm EVA foam for the base. Remember, the unit is only as good as the installer. It is important the fitter is certified to work on this type of equipment.

The RTK5 will cool most large cabs without any problem, in our experience we have not come across any machine that we could not cool with it. From Backhoes to D9 and D10 dozers. In some cases the unit can not be installed on some truck roofs eg, where the park lights are up front and traditionally long or heavy angles. Unit comes ready to plg and play, discharge and suction hoses and positive and negative and the clutch wire is all that is needed, Unit takes around 900grams of 134a gas, depending on hose lengths. We have sold these units to light refrigeration vehicles, such as flowers and chocolate goods.

the units fans can be replaced with off the shelf items here in Aust except for the receiver drier. Rencool always has good stock of any component for the RTK5.

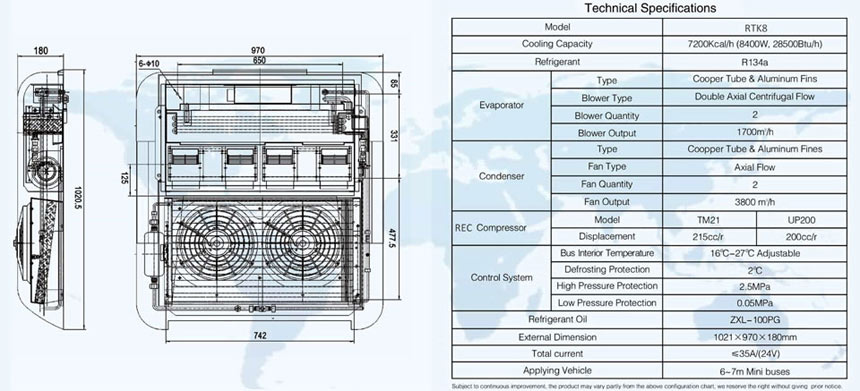

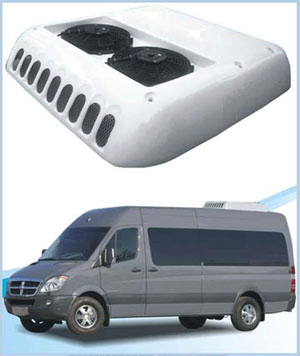

RTK8 ROOFTOP

With its high cooling capacity of 28 500 BTU and slim design it makes the perfect choice in rooftop systems for Australian mobile vehicles.

The RTK8 is designed to suit many types of mobile equipment for Australian conditions with tough external construction.

Ideal for:

Motor Homes
Small shuttle buses
Dual cab trucks
Large rubber track machinery

Roof-mount layout makes convenient opening and overhauling.
Fashionable appearance, perfectly integrating with the bus body: Streamline design, reducing air resistance in driving.
High quality fibreglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
Abundant and substantial cooling capacity, low noise, low power consumption.
World brand key parts assure the system's reliability and stability.
Water proof connectors efficiently increase the system's reliability and electric parts lifespan.
Universal parts application leads maintaing interchangeability, mostly lowing down after sales service costs.

Features and specifications

*Air vents x 6 + 3 way grills
*Condenser: Copper tube & fin
*Evaporator: Copper tube & fin
*Receiver drier
*T.X Valve R - type 2.5 ton
*Sight glass
*Digital thermostat control electronic with de-ice
*Dual safety pressure switch
*Evaporator Blowers x 2
*Condenser fans x 2
*Powder coated steel construction frame
*Fibreglass top cover 5mm

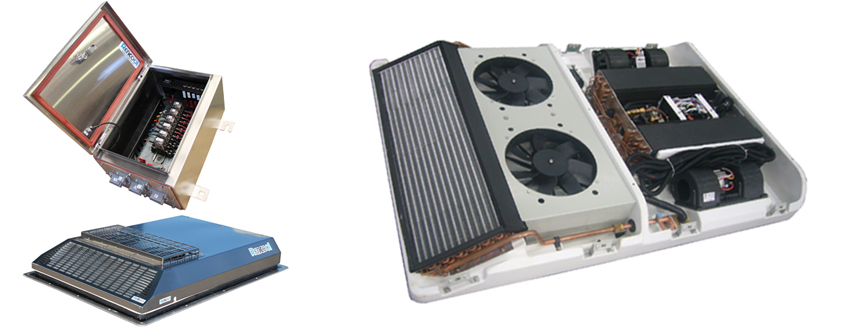

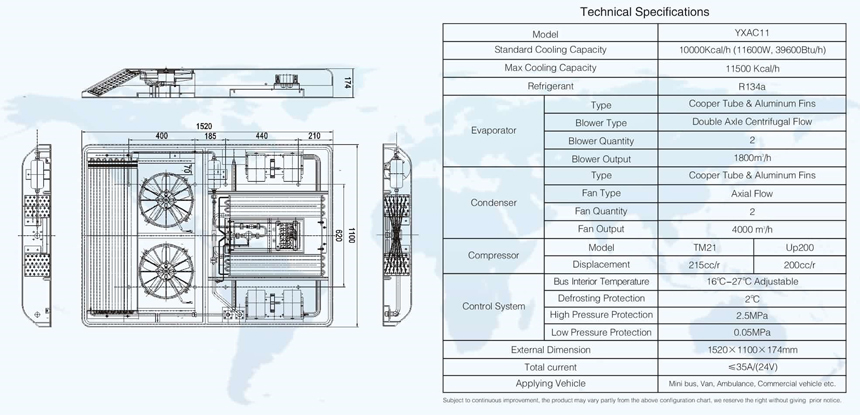

RTK11 ROOFTOP

Roof-mount layout makes convenient opening and overhauling.
Fashionable appearance, perfectly integrating with the body;
streamline design
High quality fibreglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
Abundant and substantial cooling capacity, low noisy, low power consumption.
World-brand key parts assure the system's reliability and stability.
Water-proof connectors efficiently increase the system;s reliability and electric parts lifespan.
Universal parts' application leads maintaing interchangeability, mostly lowing down after-sales service costs.

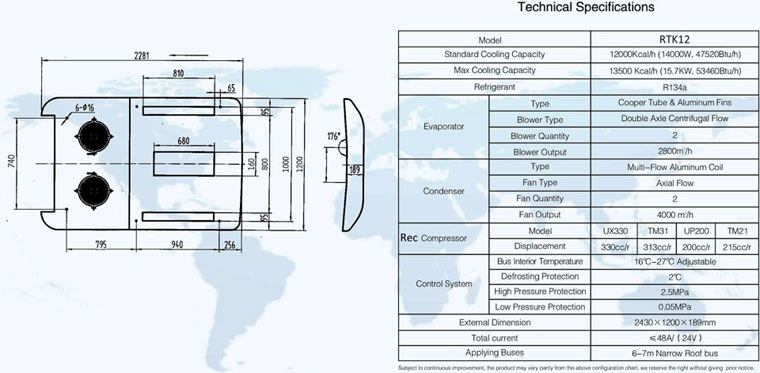

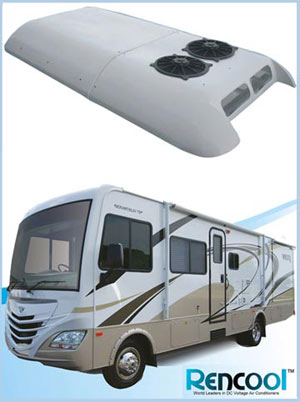

RTK12 ROOFTOP

With its Cooling capacity of 41 000 BTU and slim design its makes the perfect choice in rooftop systems for Australian mobile vehicles

The RTK12 is designed to suit many types of mobile equipment for Australian conditions with tough external and internal construction.

Ideal for:

Motor Homes
Small shuttle buses
Dual cab trucks
Large rubber track machinery

Roof-mount layout makes convenient opening and overhauling.
Fashionable appearance, perfectly integrating with the bus body: Streamline design, reducing air resistance in driving.
High quality fibreglass epoxy resin case and cover, high in strength and resistance to vibration and corrosion.
Abundant and substantial cooling capacity, low noise, low power consumption.
World brand key parts assure the system's reliability and stability.
Water-proof connectors efficiently increase the system's reliability and electric parts lifespan.
Universal parts application leads maintaing interchangeability, mostly lowing down after sales service costs.
